This product is a new package on the market, and is used as an expansion module for commercial vehicle diagnosis of the LAUNCH PRO series diagnostic products (8 inches).
It consists of the X-431 SmartLink V2 heavy-duty truck diagnostic module, commonly used non-standard connectors and a heavy-duty truck software package.
Features：
ØSupports multiple communication methods such as Bluetooth, Wi-Fi, USB, etc.
ØSupports full system detection with functions such as code reading and clearing, data stream reading, special functions, action testing, etc.
ØSupports over 75 commercial diagnostic software
ØSupports mainstream buses and heavy vehicles' software such as trucks, buses, specialists, and trailers
X-431 SmartLink C HD LITE Heavy Duty Module Features:
Dual-processor Cortex-A7 + Cortex-M7
8GB RAM + 256MB storage
320×480 resolution display
Multiple connectivity options: Bluetooth, Wi-Fi, USB
Compatible with X-431 PRO series (8-inch tablet): PROS V5.0/ PRO V 5.0/ PRO TT/ PRO Dyno
Full-system diagnostics: Read/Clear DTCs, Read Data Streams, Special Functions, Actuation Tests.
Heavy-Duty Software Coverage
Engine Systems: Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai, etc.
Vehicle Types: Trucks, Buses, Construction machinery, Natural gas vehicles
X-431 SmartLink C HD LITE Support list:
VIN self-recognition
Mercedes-Benz
Hino
Neoplan
Wilburco
Cummins
Bosch Diesel
Hyundai
OBD(HD) Western Star
Dachai
Case
Wanguo
PAKA
Xichai
Duff
Caterpillar
Issa Bus
Peterbilt
Yangchai
Delphi
Asahi
Elisal
Quanchai
ZF
Dongfeng Commercial Vehicle
Credo
Isuzu/Chongqing Isuzu
Renault
JAC Commercial Vehicle
FAW Jiefang
Iveco
Aftertreatment Systems
Mark
Foton Commercial Vehicle
Detroit
Jezebel
Setra
Perkins
Heavy Duty ABS
Deutz
John Deere
Setel
Scania
ACE Machinery
Doosan
Kenworth
Sterling
Shaanxi Automobile
Aisin
Eaton
MAN
Steyr
Shangchai
Allison
Erf
Maxfair
Tata
China National Heavy Duty Truck
Asho Krelander
Slankers
Miller
Voith
Nissan (UD)
Commercial Vehicle One-Touch Entry System
Freightliner
MWM Volvo
Weichai
Pentax ABS
Fuso
Natural Gas
Volvo Construction Machinery
Yuchai
Specifications of X-431 SmartLink V2(SmartLink C HD LITE)：
CPU: Dual-processor Cortex-A7 + Cortex-M7
Operating system: Linux
Resolutions: 320x480
Power< 6w
Storage: 8GB
Memory: 256M
Working temperature: 0℃~50℃
Working voltage: 9V DC—36V DC
Size: 200mm×110mm×47mm
Communications: WIFI/Bluetooth/Ethernet

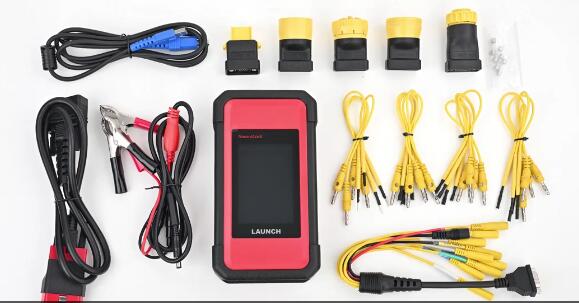

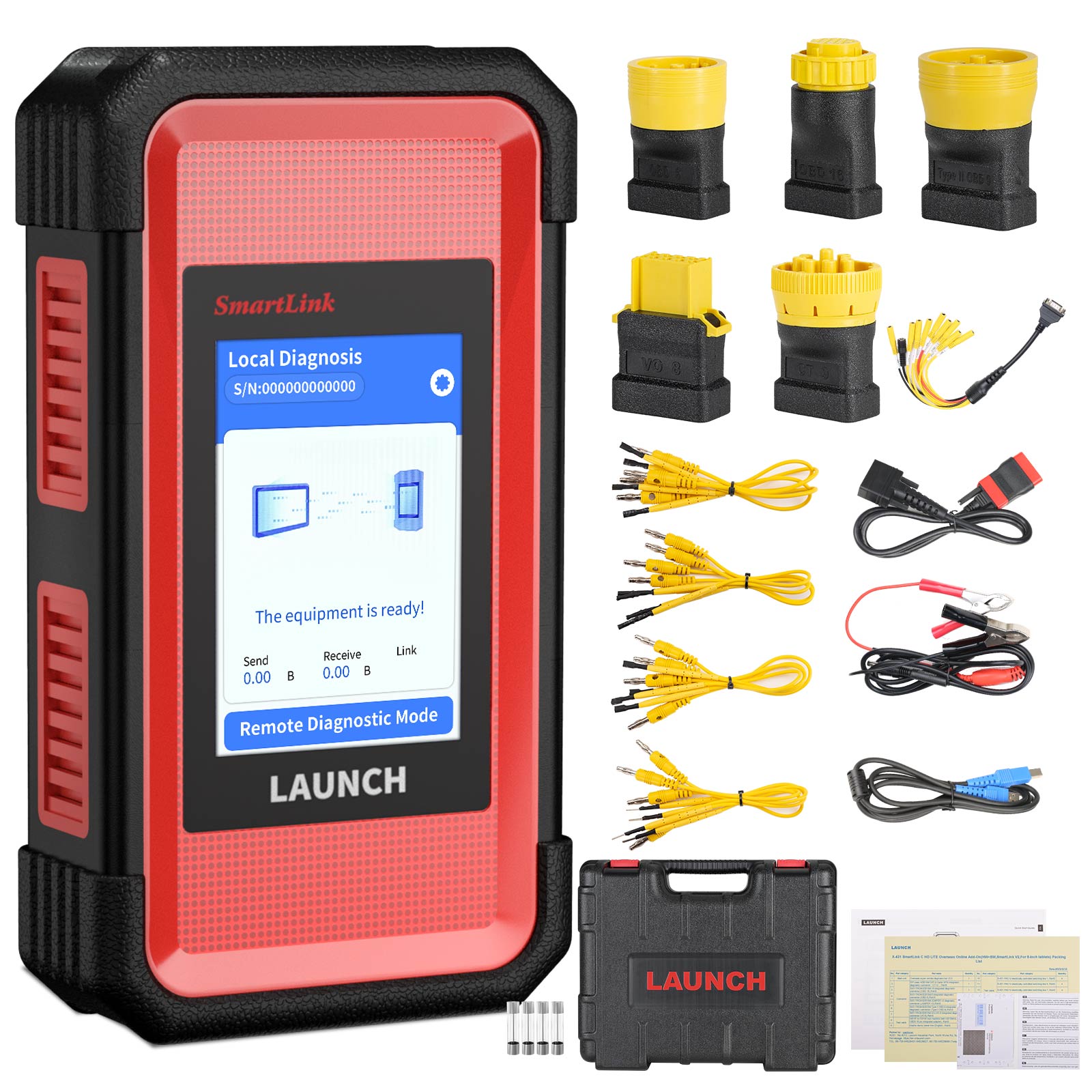

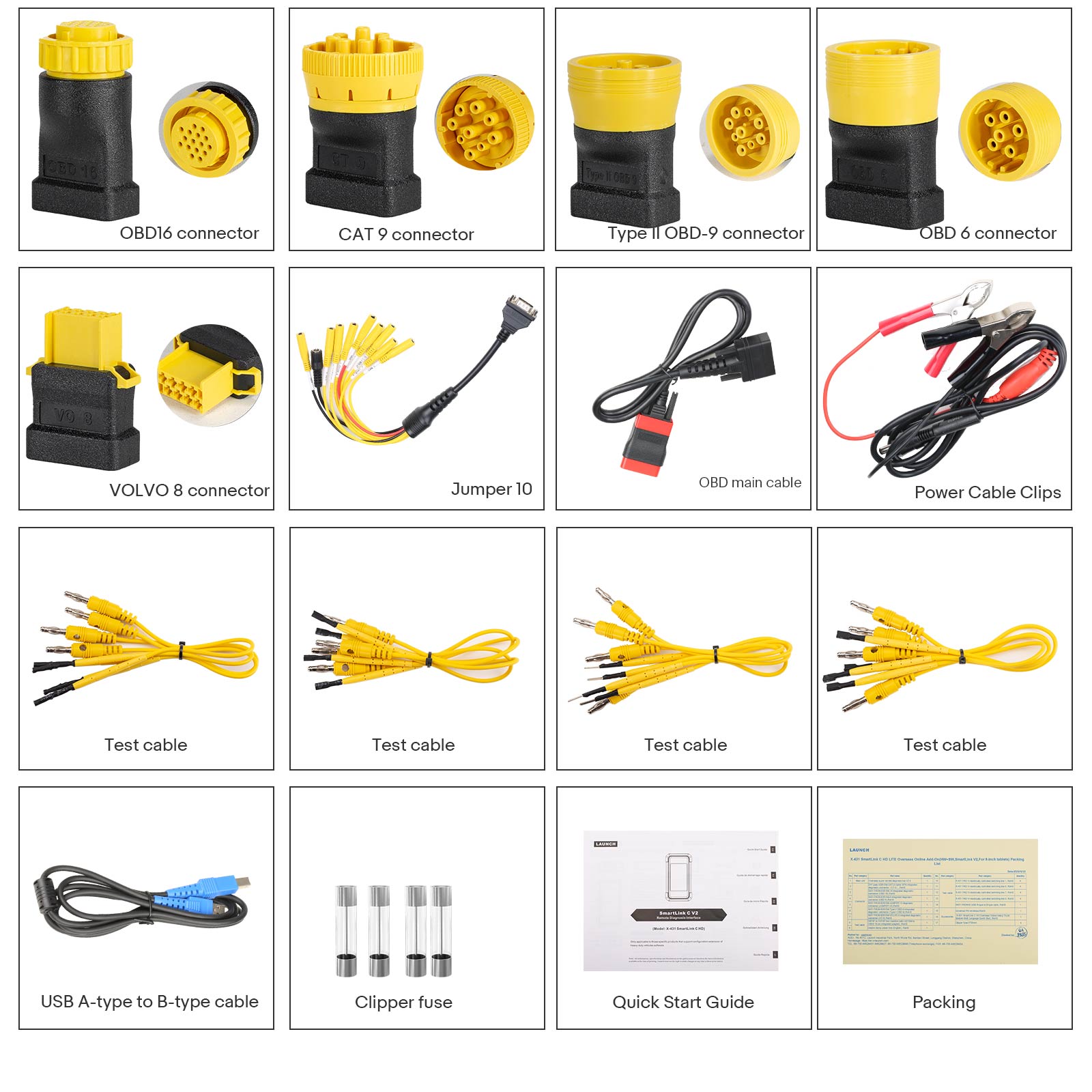

Package includes:
1pc x X-431 SmartLink V2
1pc x HD15F to OBDII 16-pin Male Integrated Test Adapter, RoHS
1pc x DB15F to HD15F Test Main Cable (with HD15M to OBDII 16-pin Male Integrated Adapter), RoHS
1pc x X431 PAD4HD USB Type-A to Type-B Cable, RoHS
1pc x X-431 SmartLink C HD Overseas Online Heavy-Duty Module Multilingual Quick Start Guide, RoHS
1pc x Universal Password Envelope (Non-LAUNCH Branded), RoHS
1pc x X431 PAD4HD B15M-Type II OBD-9 Integrated Diagnostic Adapter (Type II OBD 9)
1pc x X431 PAD4HD B15M-6 Integrated Diagnostic Adapter (OBD 6)
1pc x DIY HDB15M-CAT-9 Caterpillar 9-pin Integrated Diagnostic Adapter (CT 9), RoHS
1pc x X431 PAD4HD B15M-VOLVO-8/Volvo 8-pin Integrated Diagnostic Adapter (VO 8)
1pc x X431 PAD4HD B15M-16 Integrated Diagnostic Adapter (OBD 16)
1pc x X431 PAD4HD B15M-JUMPER-10 Heavy-Duty Jumper 10-pin Diagnostic Adapter (JUMPER 10)
1pc x Dual-Clamp Power Cable (English Version, Non-LAUNCH Branded), RoHS
4pcs x Fuse, AC250V/5A, φ5×20mm, ROHS
4pcs x X-431 PAD IV Electronic Control Adapter Cable 1, RoHS
4pcs x X-431 PAD IV Electronic Control Adapter Cable 6, RoHS
4pcs x X-431 PAD IV Electronic Control Adapter Cable 7, RoHS
4pcs x X-431 PAD IV Electronic Control Adapter Cable 8, RoHS
